EVM125
Vertical Mast Lift – 12.5m Electric
JLG T12E+ or similar

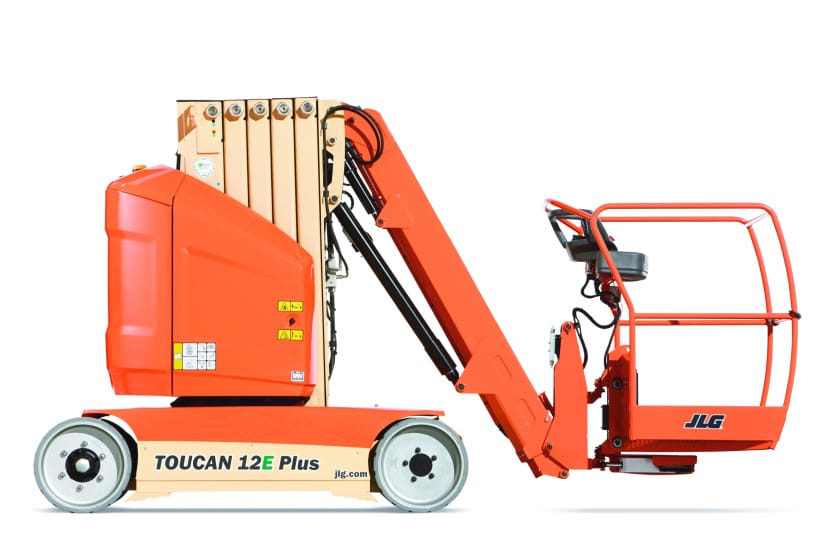

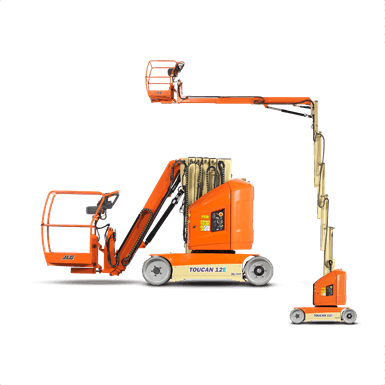

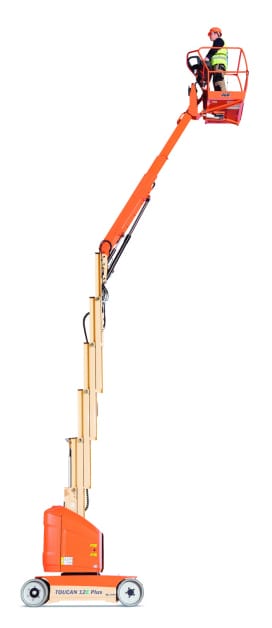

The JLG Toucan12E+ is an electric mast boom lift with a compact design for precise control and easy access to difficult to reach areas. Maximum lift capacity is 200 kg, working height is 12,65 m and horizontal reach is 6,7 m. The Toucan 12E+ has a left and right basket rotation function and is fit for indoor and outdoor use.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
12,70 m
Workload Capacity
200 kg
Own weight
4.900 kg
Platform dimensions (d x w)
1,05 x 0,70 m
Transport dimensions (d x w x h)
3,65 x 1,20 x 1,99 m
Max platform height
10,70 m
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG T12E+ Specification sheet EN.pdf
09 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_ToucanMastBoomLifts_1001150411_T12E+_HORIZONTAL_OUTREACH.ifc
09 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_ToucanMastBoomLifts_1001150411_T12E+_STOWED_POSITION.ifc
09 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_ToucanMastBoomLifts_1001150411_T12E+_VERTICAL_OUTREACH.ifc
09 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_T12E+.rfa
09 Apr 2024
Specification Sheet Riwal
RIWAL_specsheet_JLG-T12E+_en.pdf
27 Mar 2024
An upgrade in toughness and strength from the well proven
A vertical aerial work platform is small, easy to operate and ifeal if you need to carry out work on, for example, ceilings. Single man lifts are particularly suitable for cleaning activities. Because the vertical aerial work platform can be operated sideways as well as up and down, it gives you a very comfortable reach. The single man lift’s oscillating cage also supports this.
