EBA170
Articulated Boom Lift – 17.0m Electric

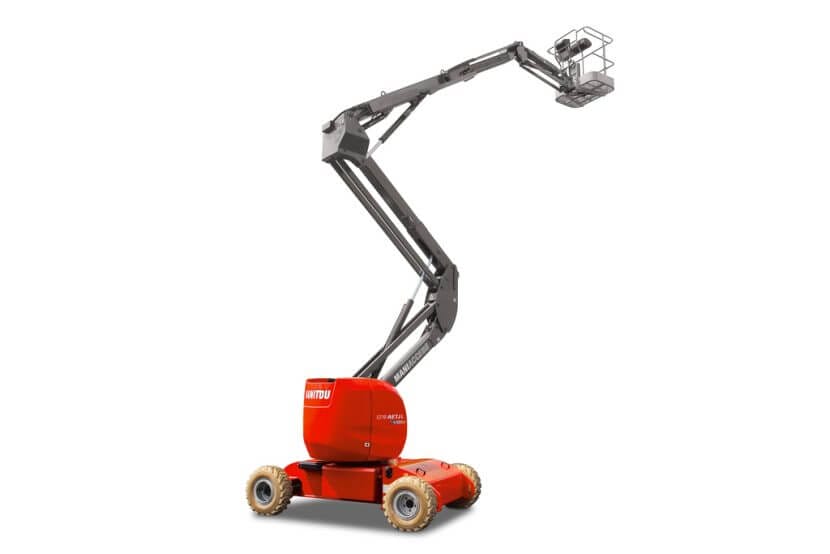

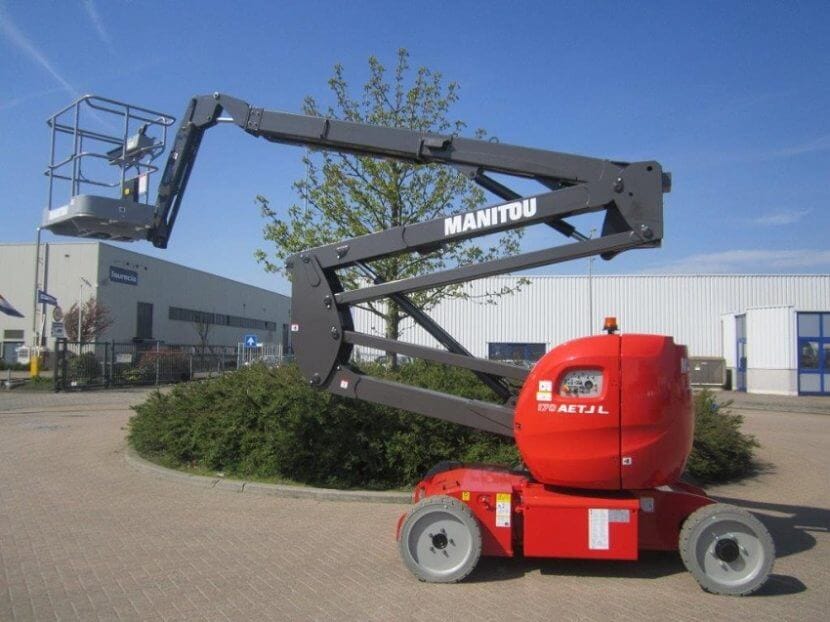

Manitou 170AETJL or similar
The Manitou MAN-170AETJ-L is a battery-powered articulated boom lift with a platform capacity of 200 kg. This electric lift has a working height of 16,9 metres and a maximum reach of 9,4 metres.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
16,90 m
Outreach
9,40 m
Workload Capacity
200 kg
Own weight
6.910 kg
Consumption (average / h)
7.47 kWh
CO2 emission (average / h)
0,95 kg
Platform dimensions (d x w)
1,20 x 0,96 m
Transport dimensions (d x w x h)
5,12 x 1,75 x 2,04 m
Max platform height
14,90 m
Max platform outreach
9,40 m
Up & over height
7,15 m
Recommended number of people
1
Maneuvering at height
Yes
Charging voltage
220-240 V
Usage
Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
