EBA140
Articulated Boom Lift – 14.0m Narrow Electric

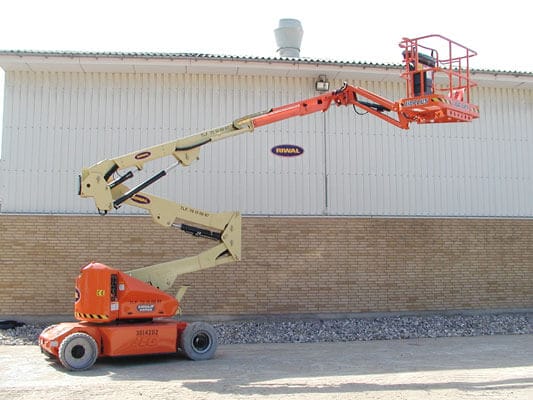

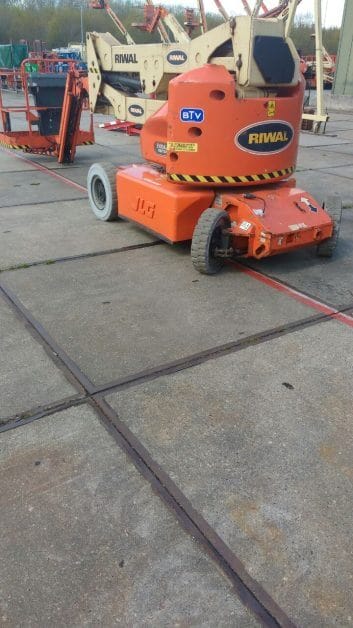

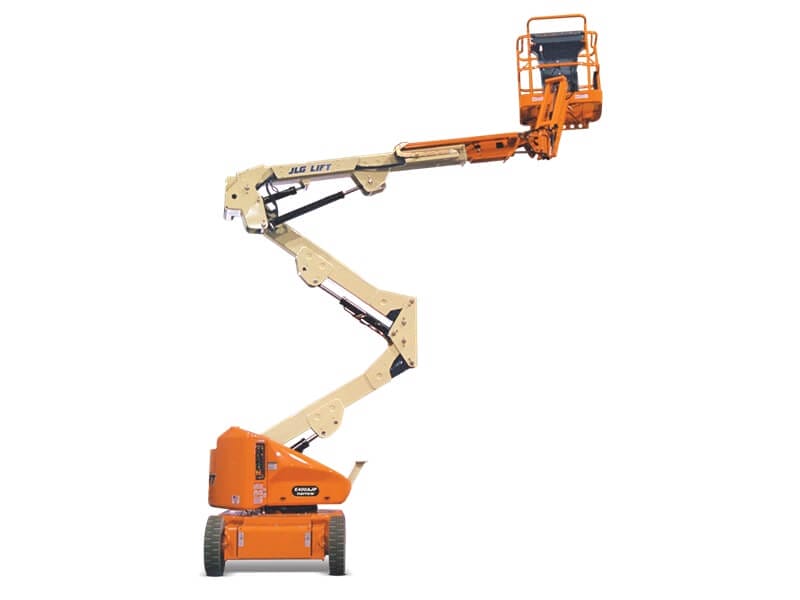

JLG E400AJPN or similar
The JLG E400AJPN is a compact articulated boom lift with a width of just 1,5 m and an impressive working height of 14,19 m. Low noise and zero emissions. Great maneuverability on uneven surfaces with Automatic Traction Control. The electric motor has long duty cycles and fast charging. Platfform capacity is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
14,00 m
Outreach
7,89 m
Workload Capacity
230 kg
Own weight
6.850 kg
Consumption (average / h)
8,73 kWh
Platform dimensions (d x w)
1,22 x 0,76 m
Transport dimensions (d x w x h)
6,71 x 1,5 x 1,97 m
Max platform height
12,19 m
Max platform outreach
6,83 m
Ground clearance
0,13 m
Drive speed
4,80 km/u
Up & over height
6,55 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG E400AJPN Specification sheet EN.pdf
02 Feb 2024
pdf
2.36 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_ElectricPoweredArticulatingBoomLifts_0010564_E400AJPN_HORIZONTAL_OUTREACH.ifc
02 Feb 2024
ifc
22.57 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_ElectricPoweredArticulatingBoomLifts_0010564_E400AJPN_STOWED_POSITION.ifc
02 Feb 2024
ifc
22.57 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_ElectricPoweredArticulatingBoomLifts_0010564_E400AJPN_TRANSPORT_POSITION.ifc
02 Feb 2024
ifc
22.59 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_E400AJPN.rfa
09 Apr 2024
rfa
25.43 mb
Specification Sheet Riwal
RIWAL_specsheet_JLG-E400AJPN_en.pdf
26 Mar 2024
pdf
95.46 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
