HBA120
Articulated Boom Lift – 12.0m Hybrid

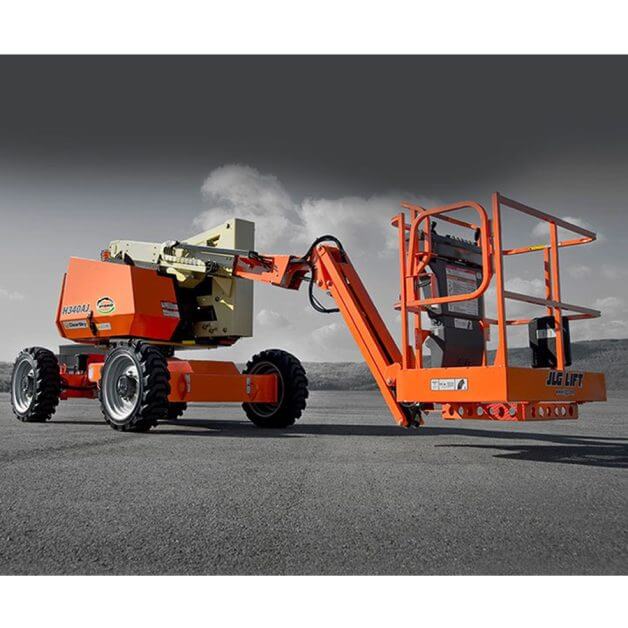

JLG H340AJ or similar
The JLG H340AJ is a hybrid articulated boom lift with a diesel-like performance. It runs completely on AGM batteries, which are charged by the diesel generator. Reduced fuel use, emissions, noise and maintenance. Working height 10,3 m and 226 kg platform capacity.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Hybrid
Working height
12,00 m
Outreach
6,70 m
Workload Capacity
230 kg
Own weight
4.472 kg
Platform dimensions (d x w)
1,52 x 0,76 m
Transport dimensions (d x w x h)
5,54 x 1,93 x 2,01 m
Max platform height
10,30 m
Max platform outreach
6,70 m
Up & over height
5,17 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Charging voltage
220-240 V
Usage
Outdoor, Indoor
Lifting Propulsion
Hybrid
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
